OVERVIEW

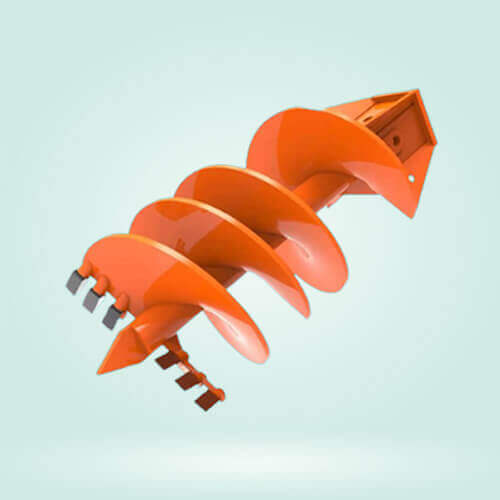

Auger

A Auger's design enables the teeth to fracture heavy duty rock and the drill to penetrate ground normally impervious to a standard Auger. Augers are generally made from the highest grade steel to ensure optimum drilling performance. They can withstand the toughest applications and ground conditions.

PRODUCT BROCHURE PRODUCT ENQUIRY

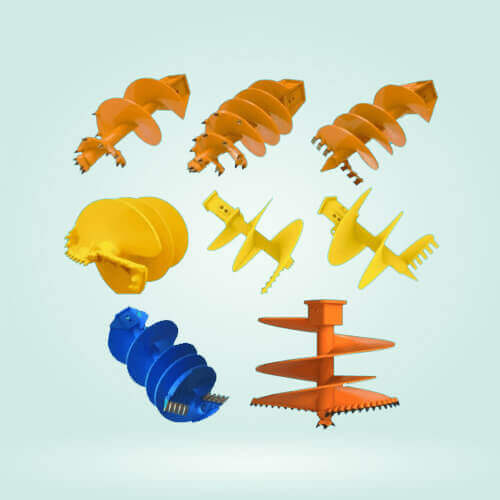

Types of Auger

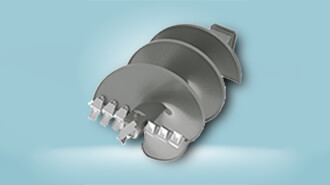

SINGLE START AUGER

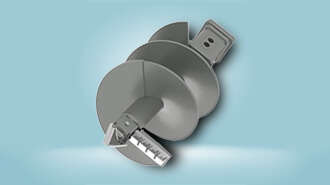

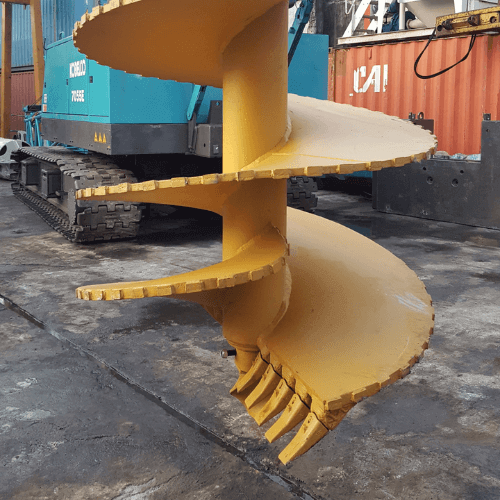

SOIL DRILLING AUGER

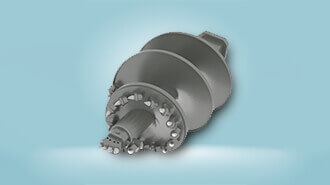

ROCK DRILLING AUGER

DOUBLE START AUGER

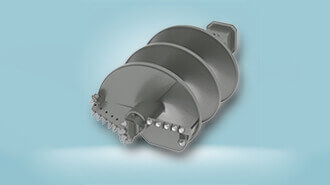

SINGLE START AUGER

Equipment: Kelly box 200 mm, flat teeth, fishtail pilot bit; easily exchangeable wear protection plates and hardfacing as wear protection

Efficient technical support for uninterrupted operations – we've got your back

AUGER
mm		 BORED PILE
mm		 PITCH
mm		 CUTTING DIAMETER
mm		 MAX. torgue
kNm
600 600 500 570 350
700 700 500 670 350
800 800 500 770 480
900 900 500 870 480
1000 1000 600 970 480
1200 1200 600 1170 480
1500 1500 800 1470 480
1800 1800 800 1770 480
2000 2000 800 1970 480

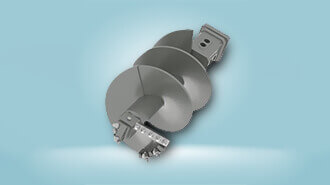

DOUBLE START AUGER

Equipment: Kelly box 200x200 mm, flat teeth, fishtail pilot bit; easily exchangeable wear protection plates and hardfacing as wear protection

Efficient technical support for uninterrupted operations – we've got your back

AUGER
mm		 BORED PILE
mm		 PITCH
mm		 CUTTING DIAMETER
mm		 MAX. torgue
kNm
600 600 500 570 350
700 700 500 670 350
800 800 500 770 480
900 900 500 870 480
1000 1000 600 970 480
1200 1200 600 1170 480
1500 1500 800 1470 480
1800 1800 800 1770 480
2000 2000 800 1970 480

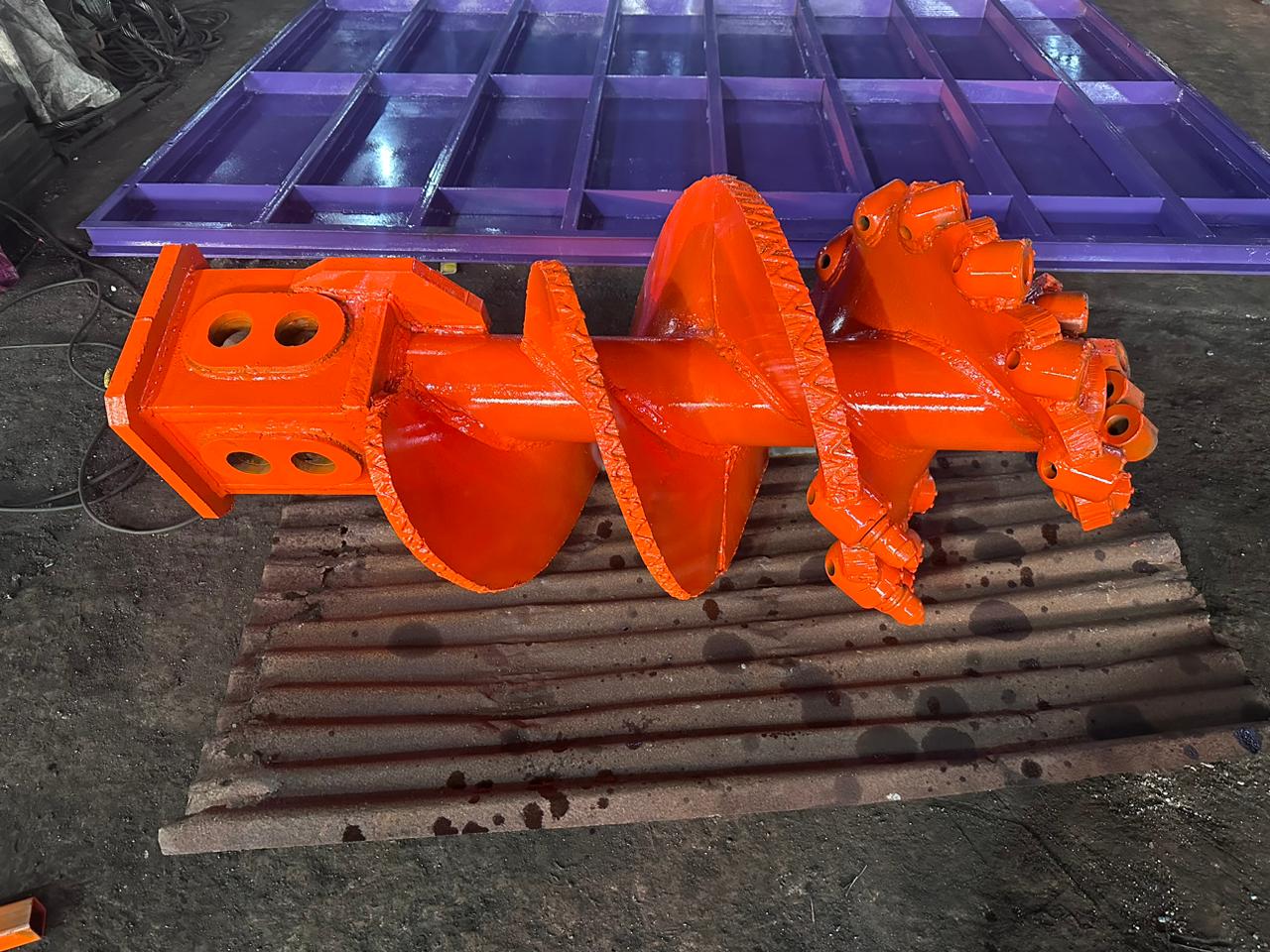

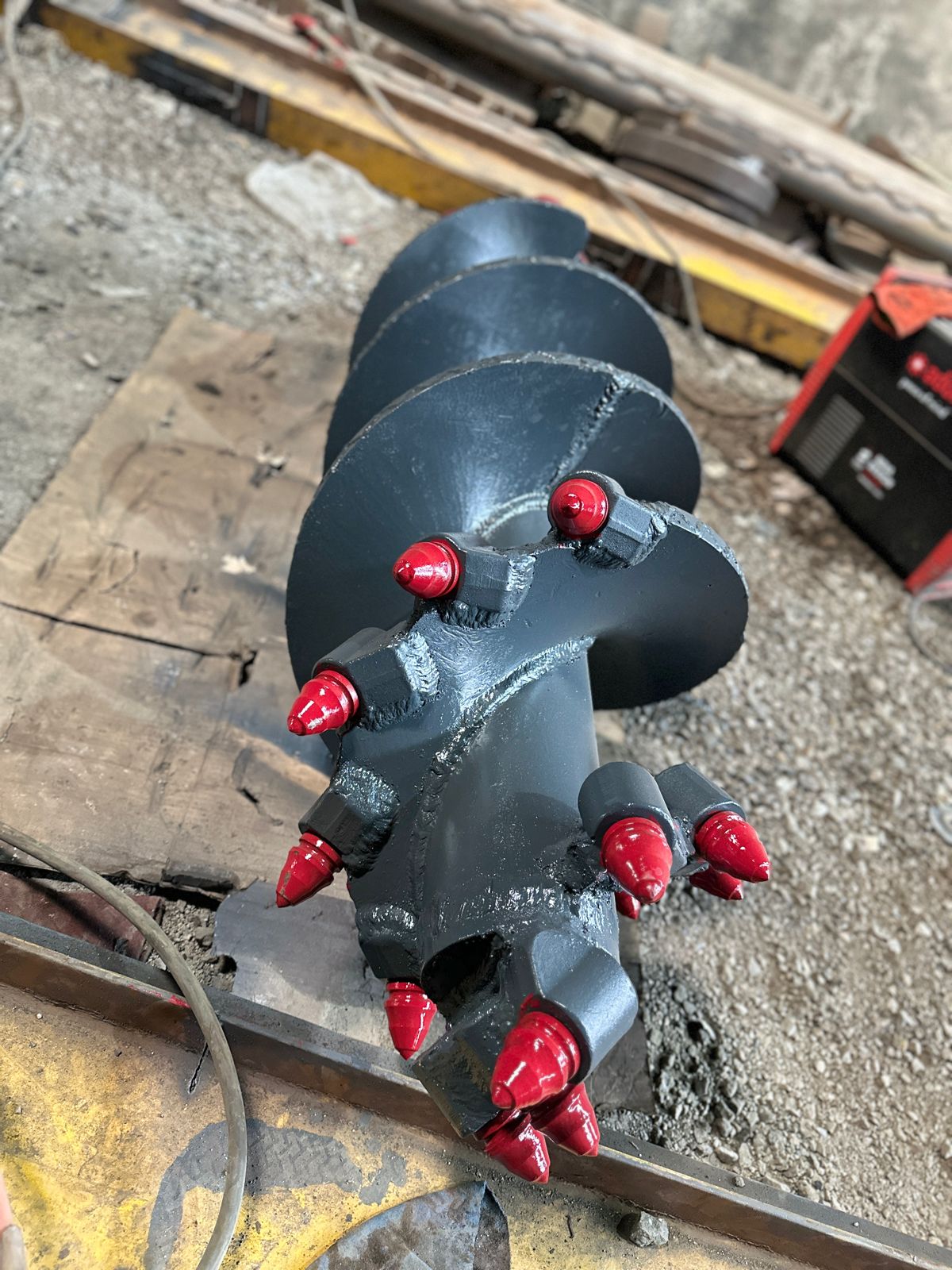

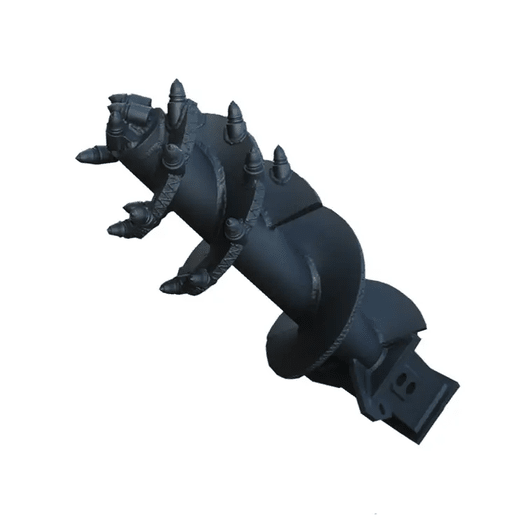

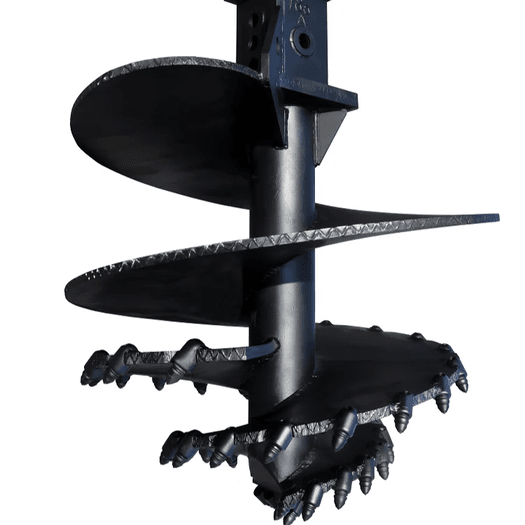

SINGLE START ROCK AUGER

Equipment: Kelly box 200x200 mm, cutter bar with round shank chisels and calibration chisels, round shank chisel pilot bit, easily exchangeable hard metal wear plates and hardfacing as wear protection

Efficient technical support for uninterrupted operations – we've got your back

AUGER
mm		 BORED PILE
mm		 PITCH
mm		 CUTTING DIAMETER
mm		 MAX. torgue
kNm
600 600 500 570 350
700 700 500 670 350
800 800 500 770 480
900 900 500 870 480
1000 1000 600 970 480
1200 1200 600 1170 480
1500 1500 800 1470 480
1800 1800 800 1770 480
2000 2000 800 1970 480

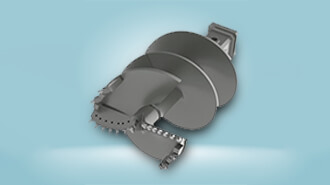

DOUBLE START ROCK AUGER

Equipment: Kelly box 200x200 mm, cutter bar with round shank chisels and calibration chisels, round shank chisel pilot bit, easily exchangeable hard metal wear plates and hardfacing as wear protection

Efficient technical support for uninterrupted operations – we've got your back

AUGER
mm		 BORED PILE
mm		 PITCH
mm		 CUTTING DIAMETER
mm		 MAX. torgue
kNm
600 600 500 570 350
700 700 500 670 350
800 800 500 770 480
900 900 500 870 480
1000 1000 600 970 480
1200 1200 600 1170 480
1500 1500 800 1470 480
1800 1800 800 1770 480
2000 2000 800 1970 480

DOUBLE START ROCK AUGER WITHOUT PILOT BIT

Equipment: Kelly box 200x200 mm, cutter bar with round shank chisels and calibration chisels; easily exchangeable hard metal wear plates and hardfacing as wear protection

Efficient technical support for uninterrupted operations – we've got your back

AUGER
mm		 BORED PILE
mm		 PITCH
mm		 CUTTING DIAMETER
mm		 MAX. torgue
kNm
600 600 500 570 350
700 700 500 670 350
800 800 500 770 480
900 900 500 870 480
1000 1000 600 970 480
1200 1200 600 1170 480
1500 1500 800 1470 480
1800 1800 800 1770 480
2000 2000 800 1970 480

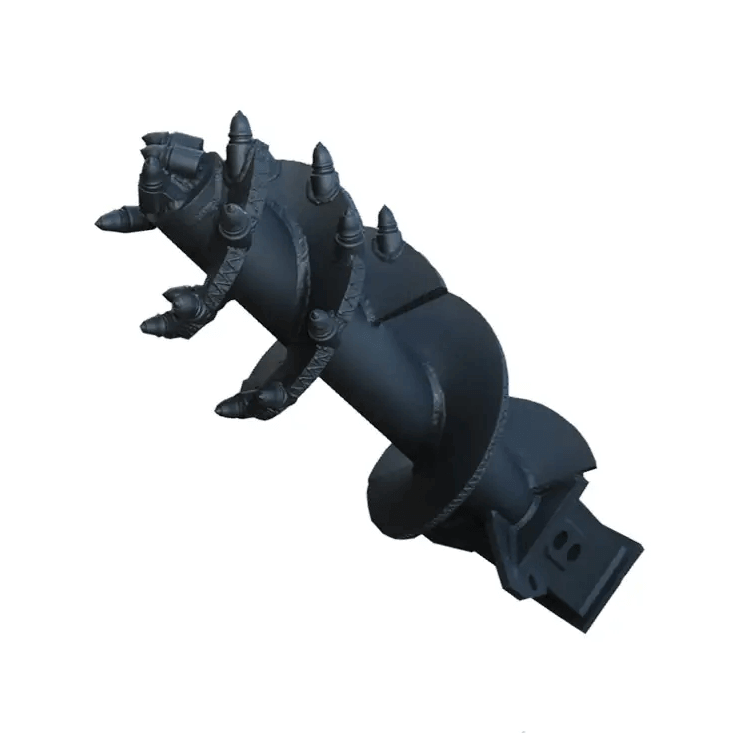

PROGRESSIVE ROCK AUGER

Equipment: Kelly box 200x200 mm, round shank chisels densely mounted on the progressive auger part, exchangeable round shank chisel pilot bit, easily exchangeable hard metal wear plates and hardfacing as wear protection

Efficient technical support for uninterrupted operations – we've got your back

AUGER
mm		 BORED PILE
mm		 PITCH
mm		 CUTTING DIAMETER
mm		 MAX. torgue
kNm
600 600 500 570 350
700 700 500 670 350
800 800 500 770 480
900 900 500 870 480
1000 1000 600 970 480
1200 1200 600 1170 480
1500 1500 800 1470 480
1800 1800 800 1770 480
2000 2000 800 1970 480

Product Gallery

Examine the spare parts commonly utilized in conjunction with the Auger

VIEW ALL SPARES

Buller Bits

Hardfacing Bullet

Roller bit

Teeth Bfz 80

H 85 Holder

T 25 Teeth

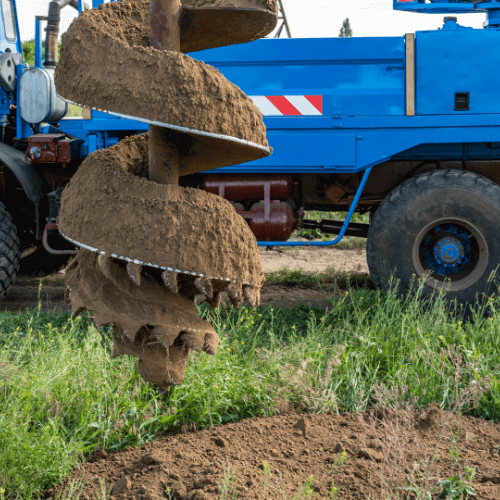

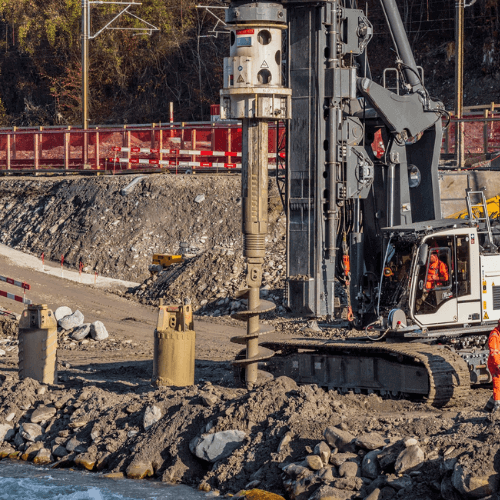

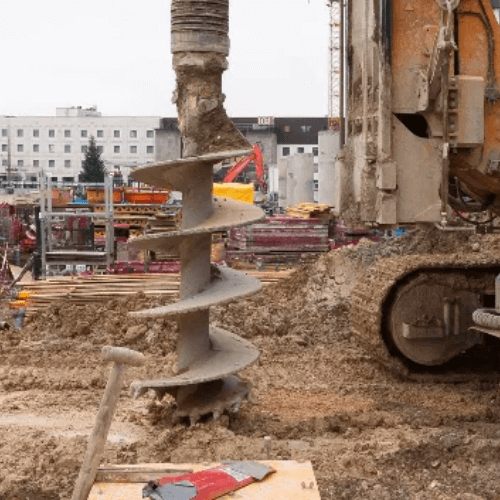

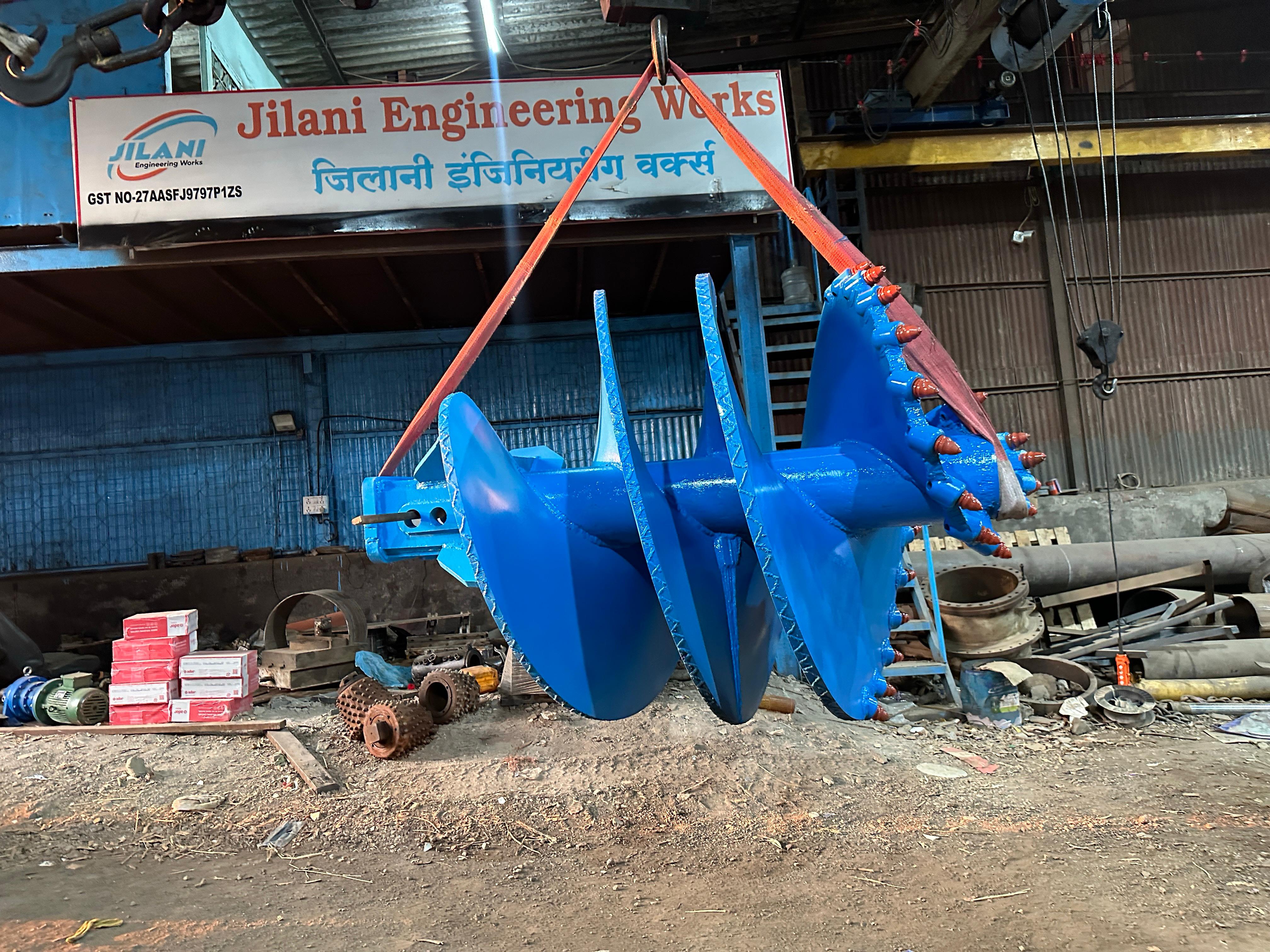

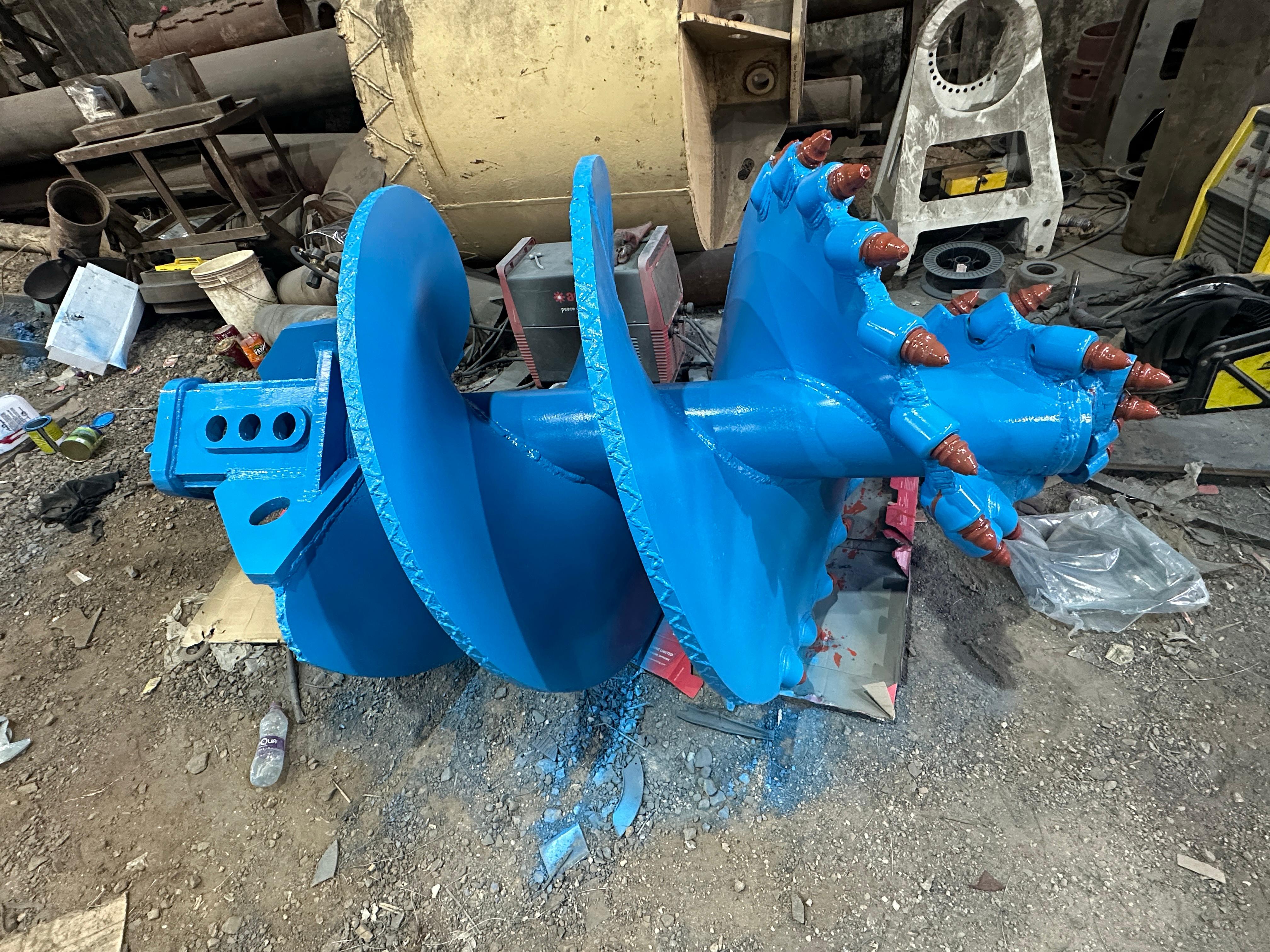

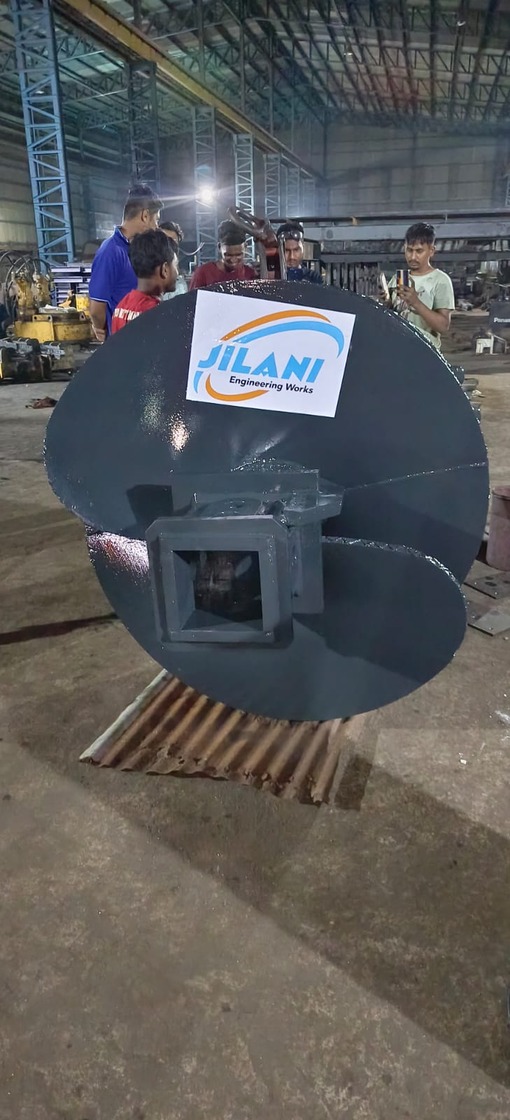

Used Cases of Auger
