OVERVIEW

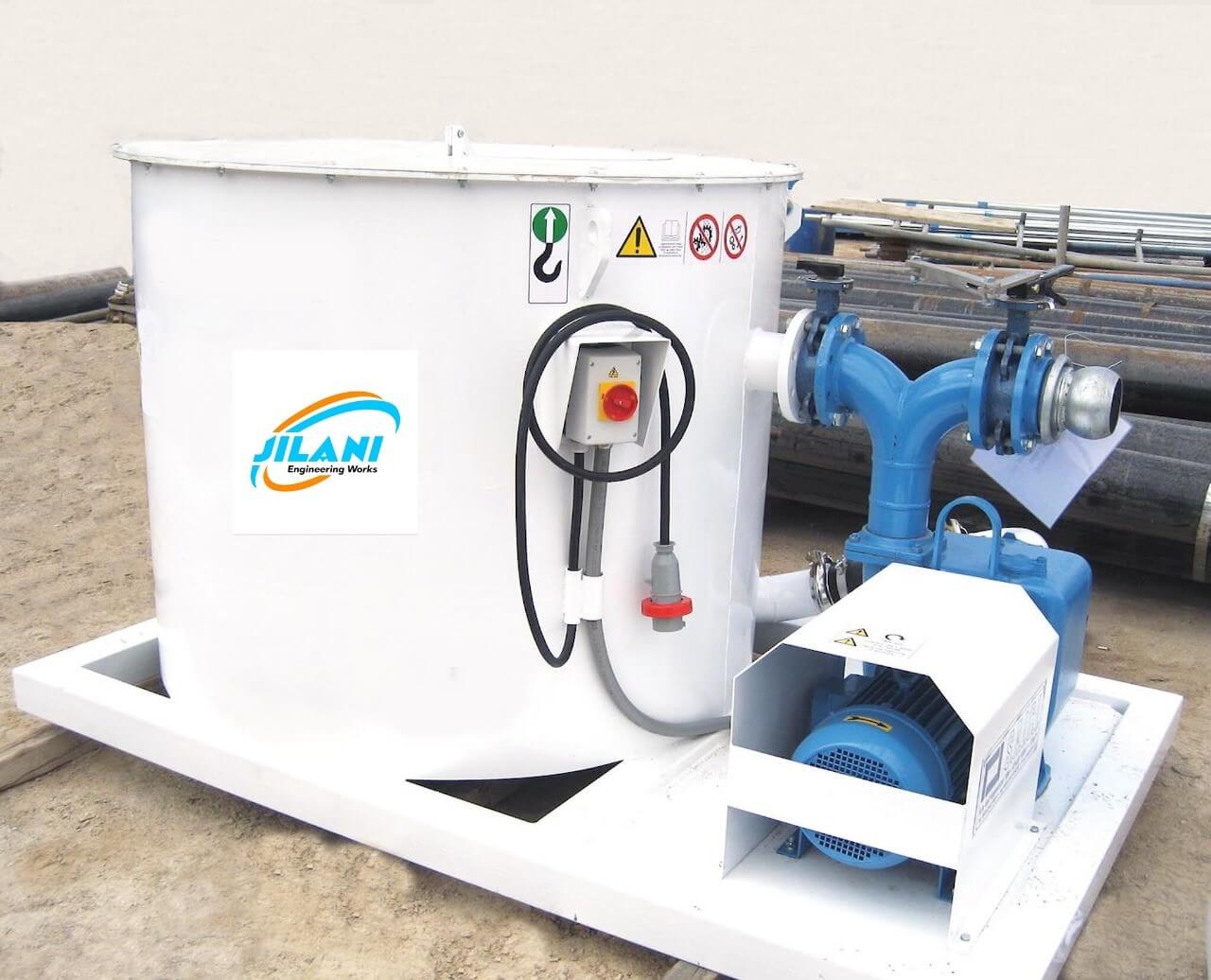

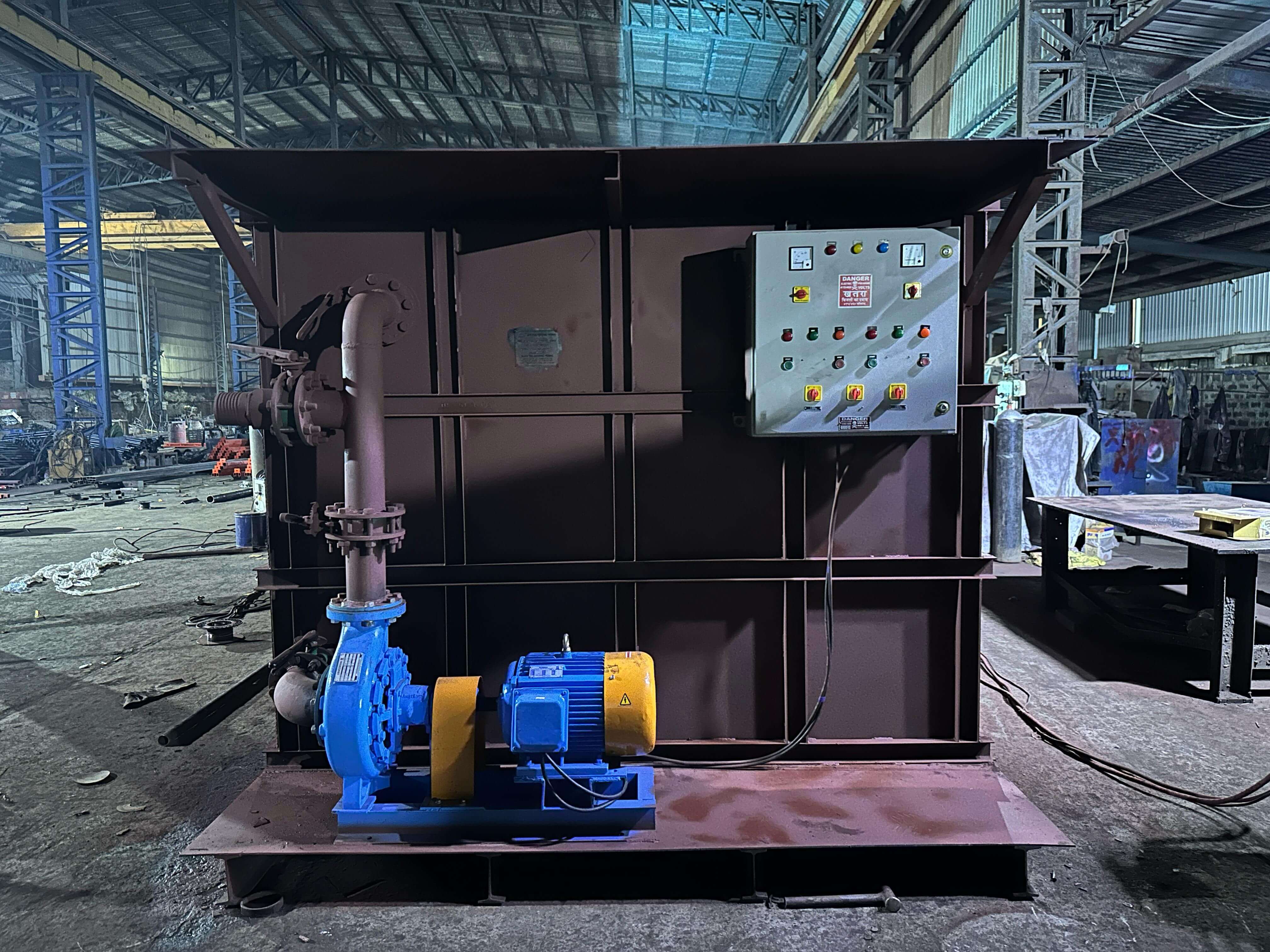

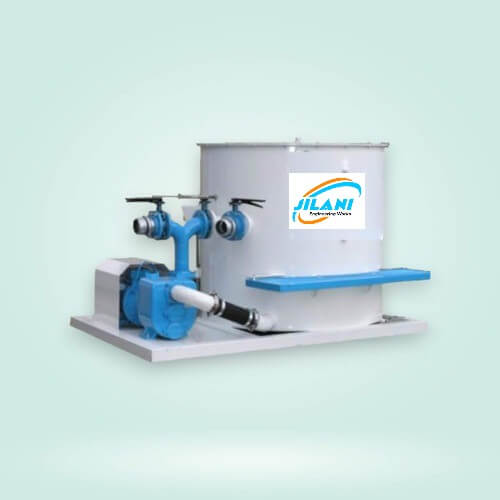

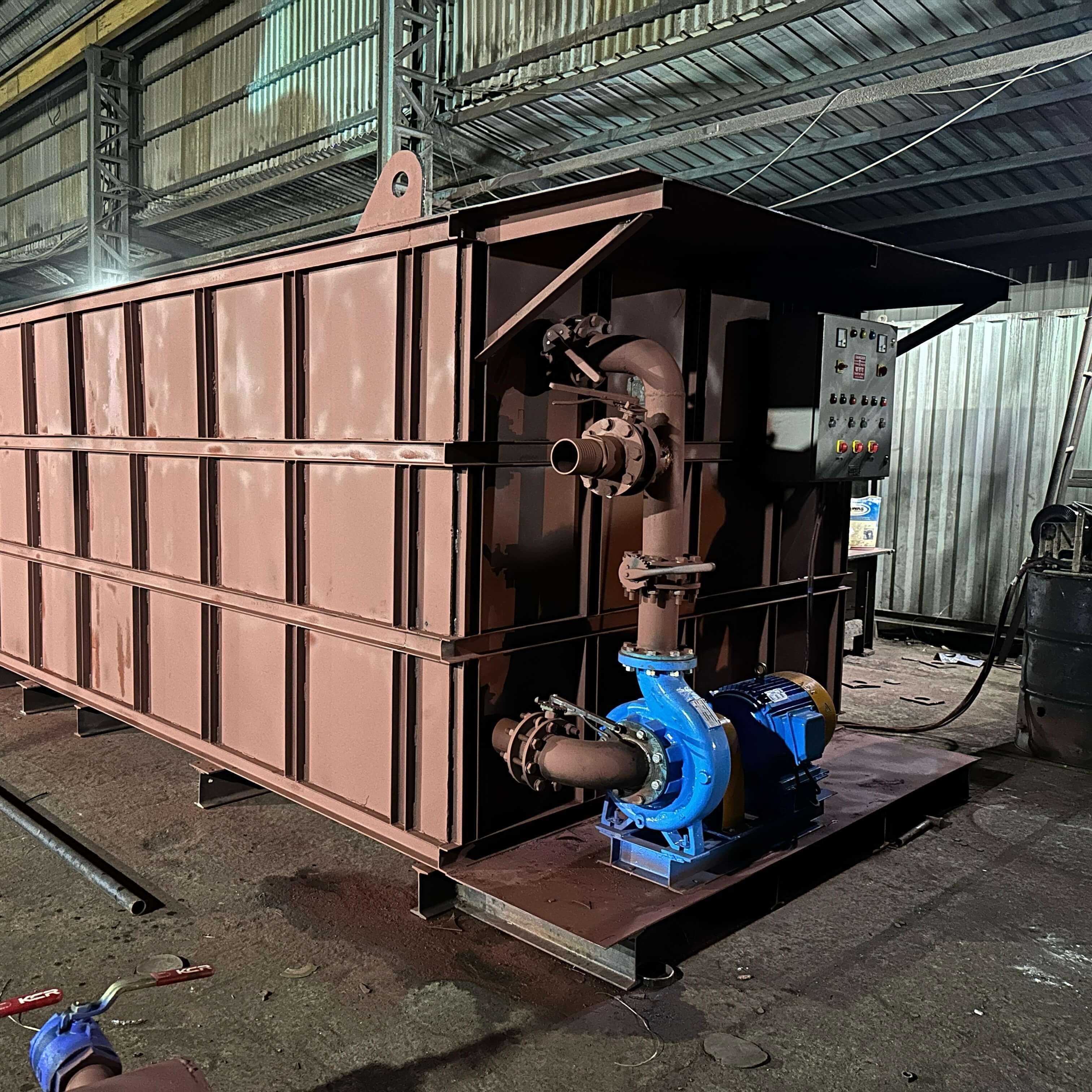

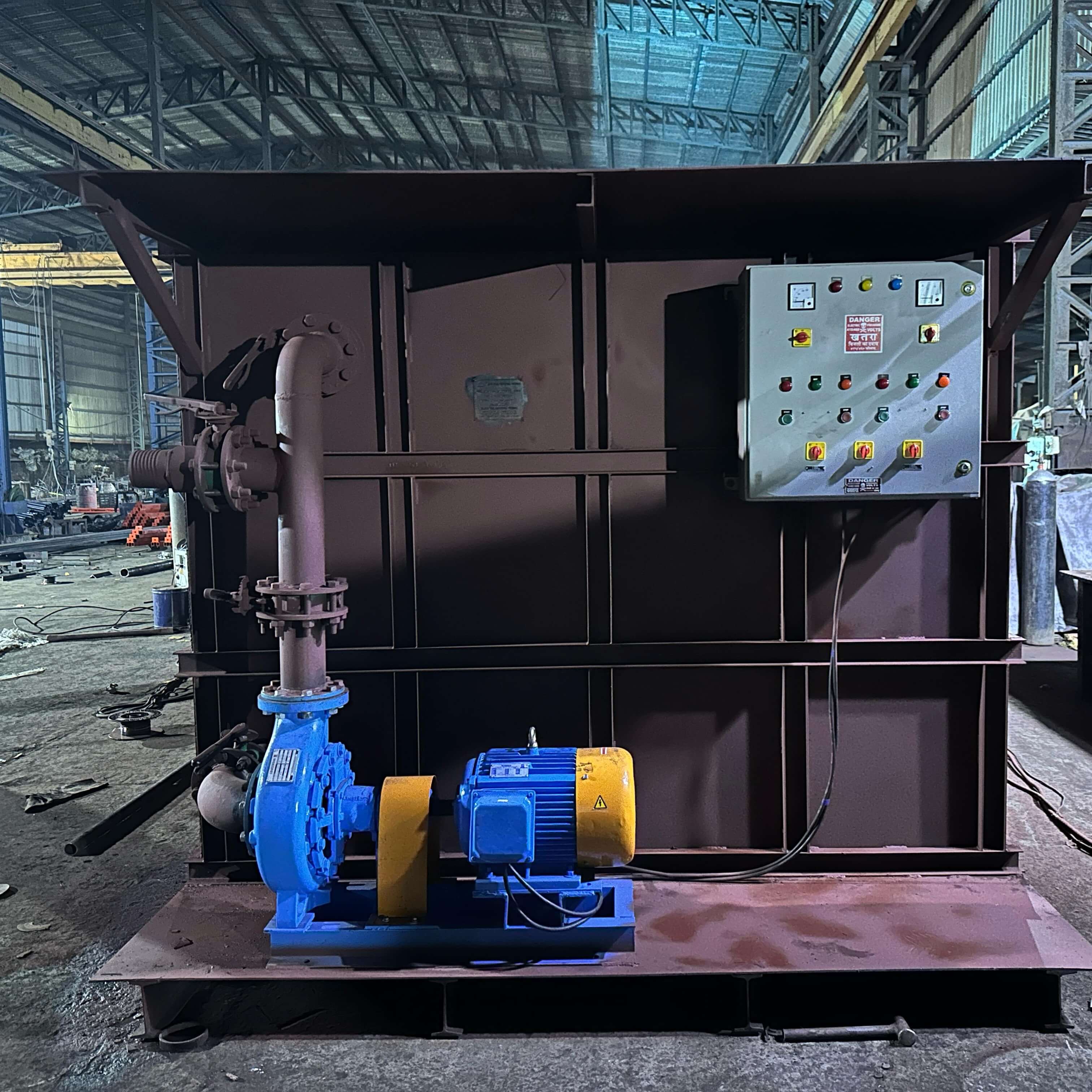

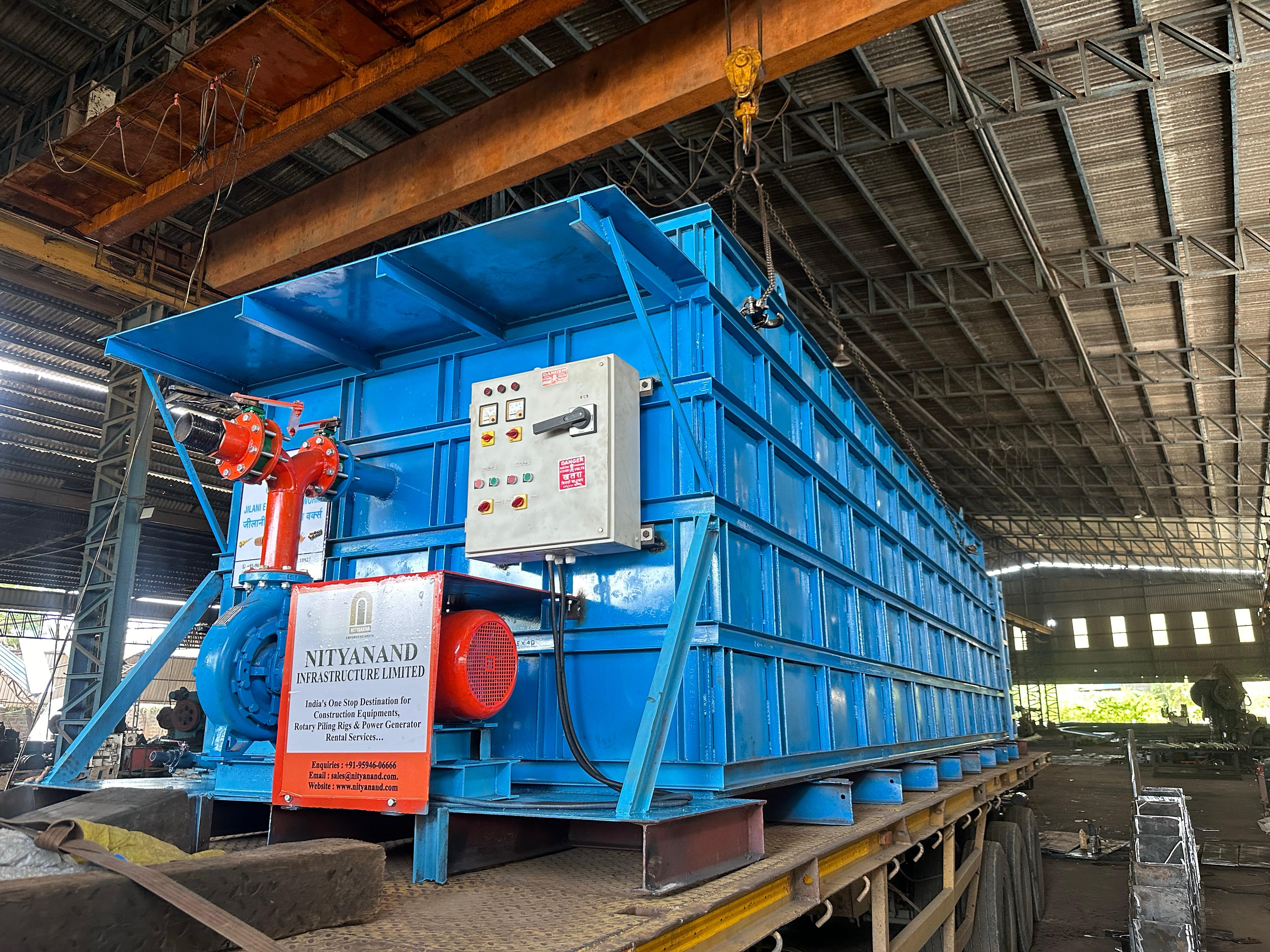

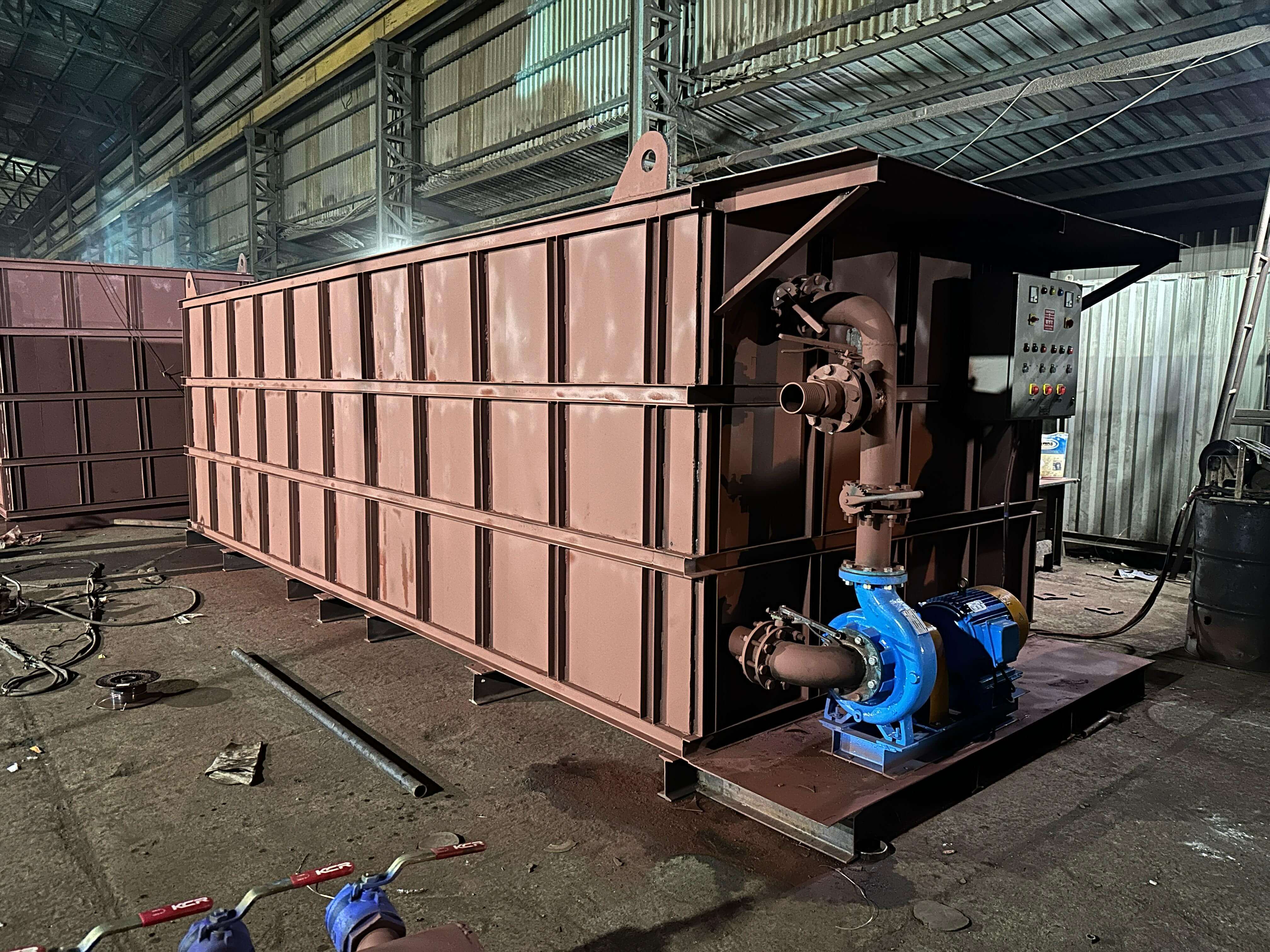

BENTONITE MIXER

Bentonite Mixers are designed to treat bentonite mud used in drilling and excavating operations. This mixer consists of a sheet steel cylindricaltank, set up on a strong frame. Muds are mixed through a high-speed vortex produced by a special pump which, after sucking from the bottom of the tank, sends them back tangentially into the same tank, shaped in order to get highest efficiency. Through a timely operating ofthe throttle valves of the system, the pump provides for carrying the muds to the storing container or to the using area. Through this process it's possible to obtain homogeneous colloidal and high-quality mixture in a short time.

PRODUCT BROCHURE PRODUCT ENQUIRY
PRODUCT DETAILS
Product Code JEW BM1000 / BM1500 / BM2000
Tank Capacity 1.2 to 2.2 m3
Output 10 to 22 m3/h
Pump Delivry 200 m3h
Electric Motor 11 Kw
Weight 850 kg to 1050 kg
Lenght 2.2 m to 2.4 m
Width 1.6 m
Height 1.2 m to 1.75 m

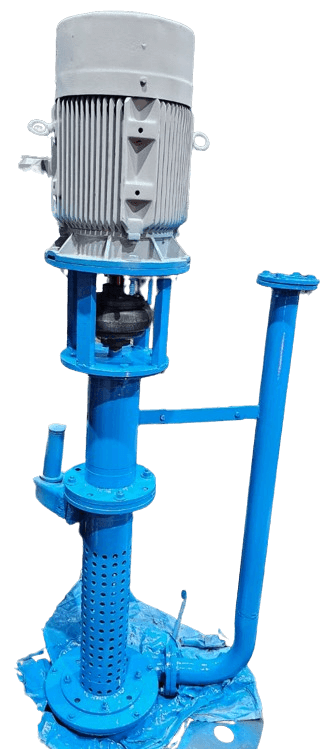

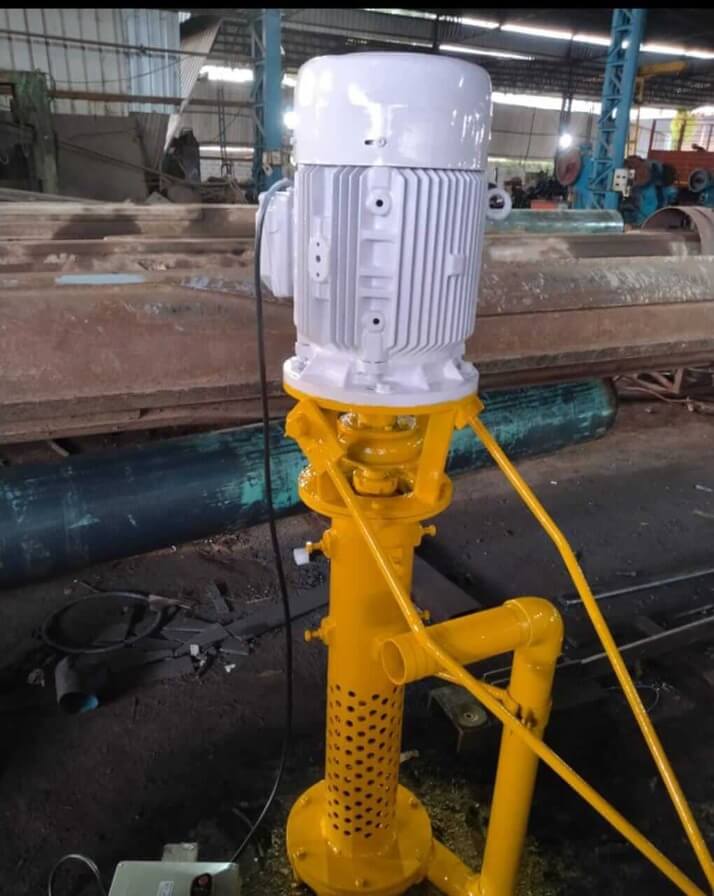

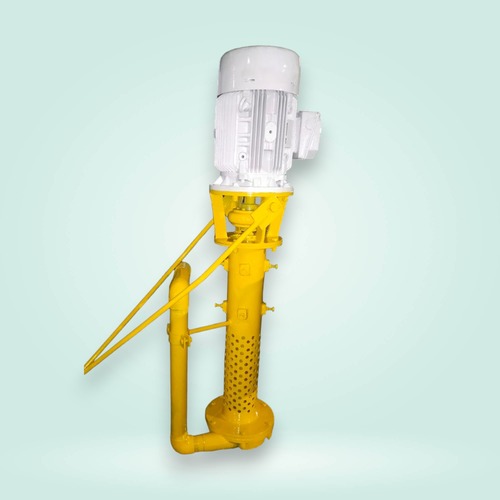

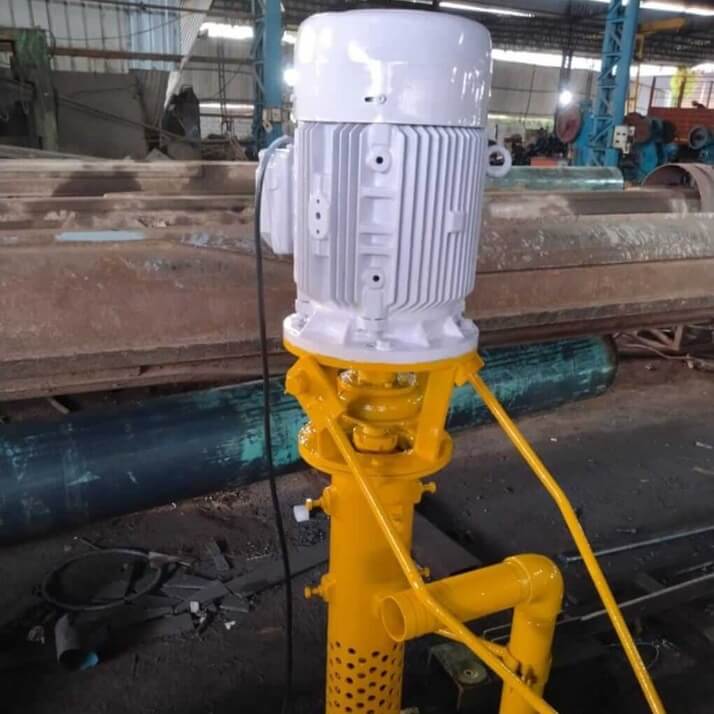

VERTICLE PUMP

PRODUCT DETAILS
Capacity Upto 325 m3/hr
Head Upto 60 Mtr.
Discharge Size 25 mm to 125 mm
Temperature Upto 60°C
Pump Lenght Upto 4 Mtr
Speed Upto 3500 rpm
Pressure Upto 6 kg/cm2
M.O.C. C.I, C.S., SS-304 / 304L, SS316 / 316L, Bronze, Alloy-20, CD4MCU Hast alloy B & C

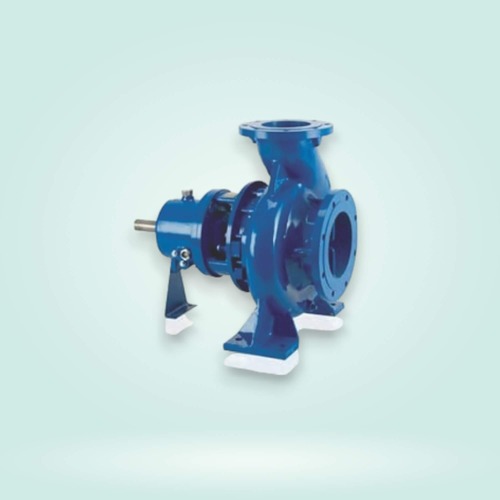

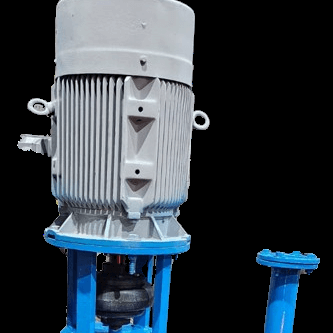

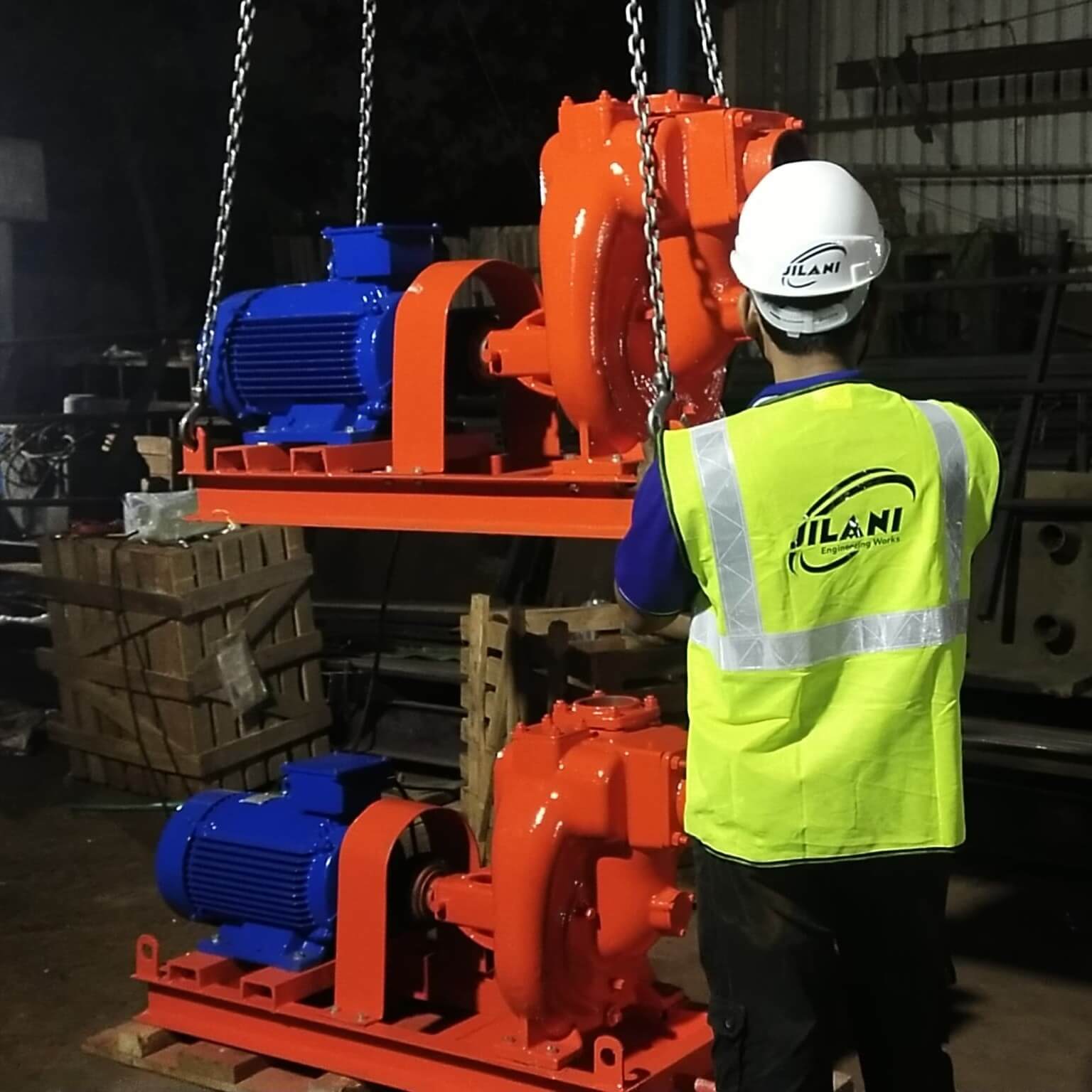

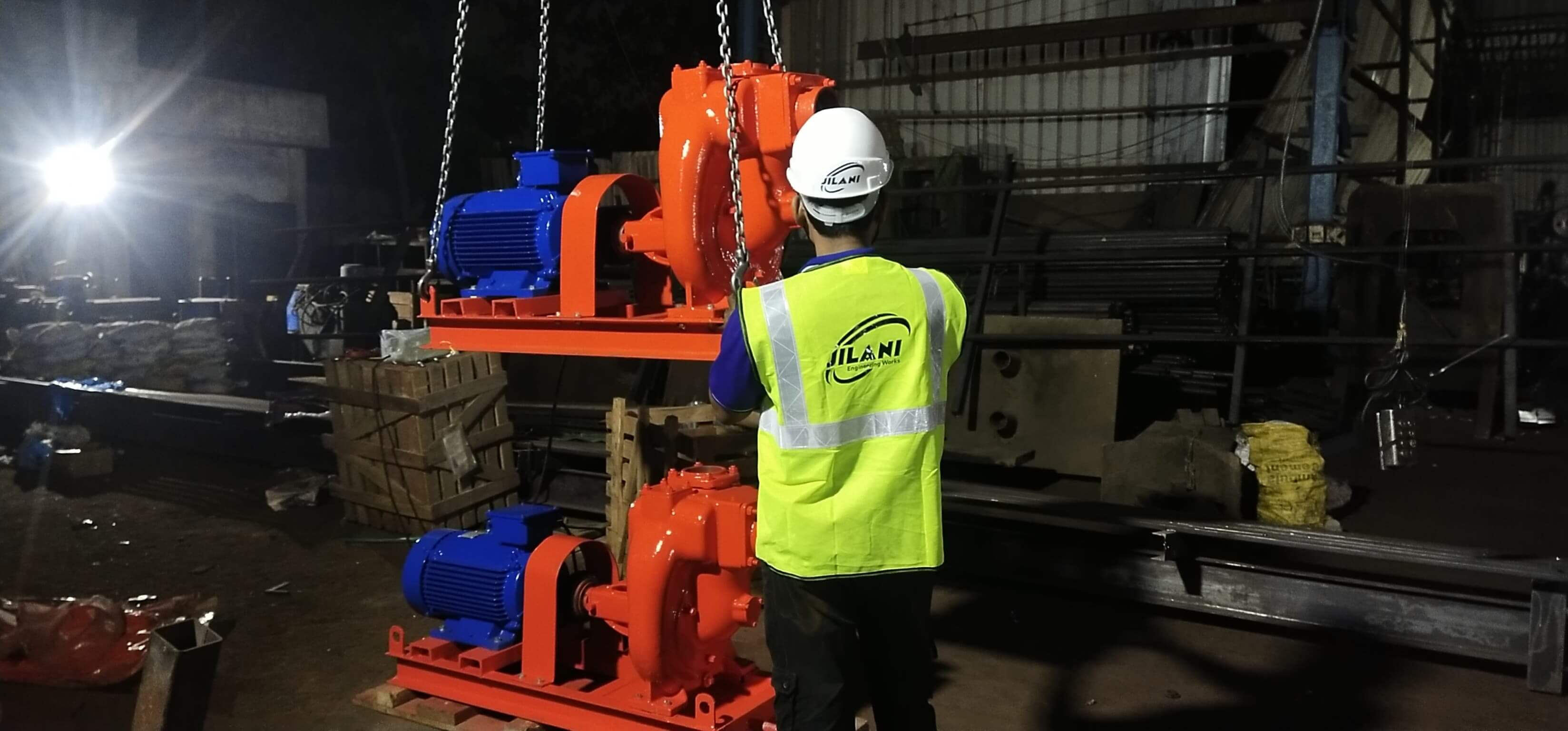

VACSEAL PUMPS

PRODUCT DETAILS
Capacity Upto 2200 M3/Hrs
Head Upto 1500 Mtr.
Discharge Size 25 mm to 300 mm
Temperature 350 0 C
Speed Upto 350 rpm.
Pressure Upto 15 Kg/cm2
M.O.C. C.I, C.S, SS-304/304L, SS316/316L, Bronze, Alloy-20, CD4MCU, Hast alloy B & C. etc..

OVERVIEW

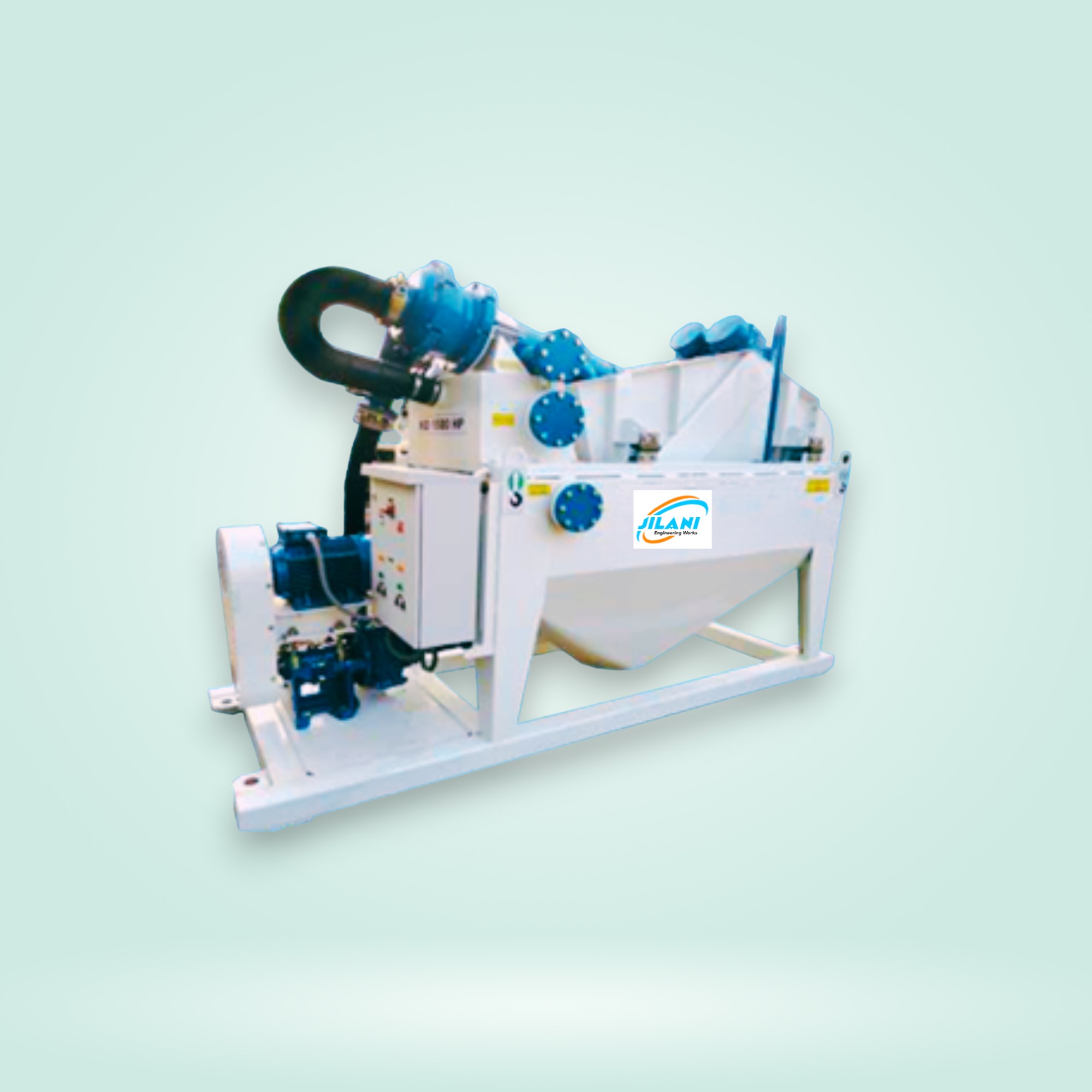

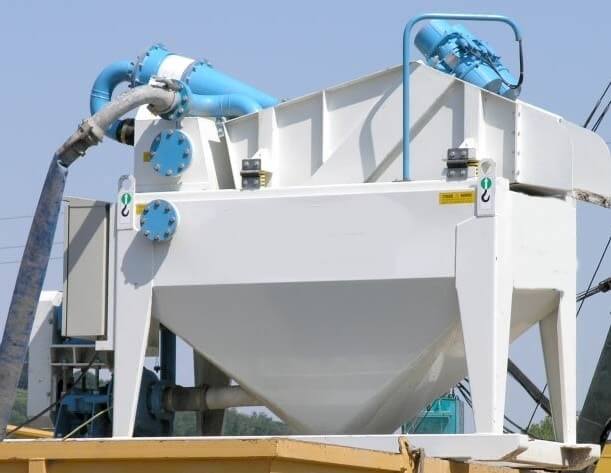

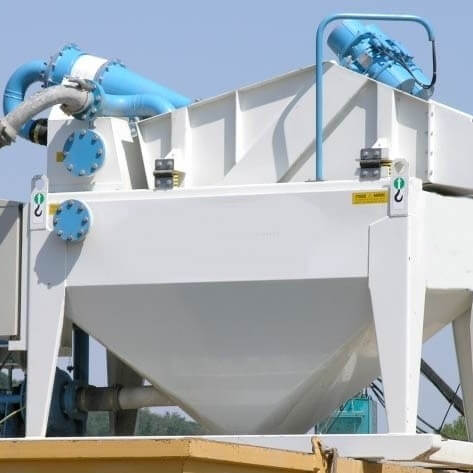

DESANDER

Desanders are installed downstream from the shale shaker and degasser. The desander removes sand-sized particles and larger drilled solids which have passed through the shaker screen and discards them along with some liquid. The partially- clean drilling fluid is discharged into the next compartment downstream. Water entering the separator is forced into a spiral flow pattern, developing centrifugal forces that cause the sand particles to move to the outer edge of the separator.

PRODUCT BROCHURE PRODUCT ENQUIRY
