OVERVIEW
Rebar Machines
The Jilani Engineering Works Threading Machine is a reliable tool known for its precision in threading applications. This robust machine, designed for creating accurate threads on pipes and rods, is celebrated for its user-friendly interface and high-performance capabilities. It has become a staple in industries requiring efficient and precise threading for optimal manufacturing processes.

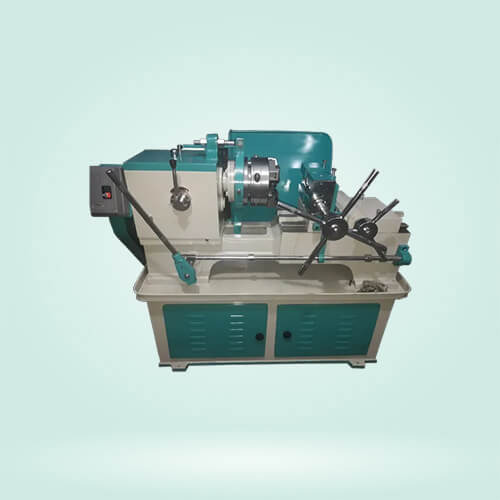

PRODUCT BROUCHER PRODUCT ENQUIRYLANDIS THREADING MACHINE
| MACHINE DETAILS | |
|---|---|
| Product Code | JEW LTM40 |
| Rebar Threading Capacity | Upto 40 |
| Phase | 3 Phase |
| Frequency | 50 Hz |
| Drive/Driven Type | Gear |
| Automation Grade | Semi-Automatic |
| Weight | 720 Kg |

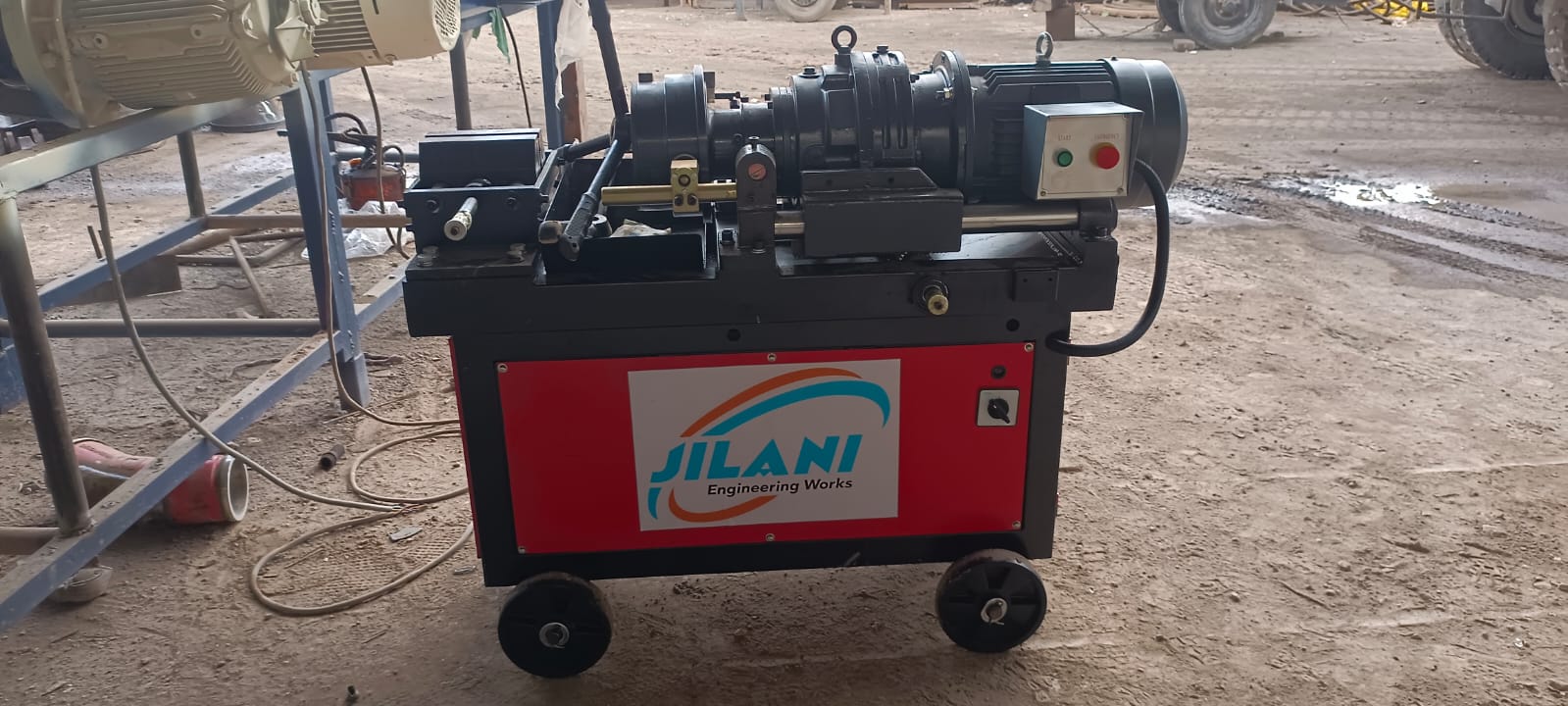

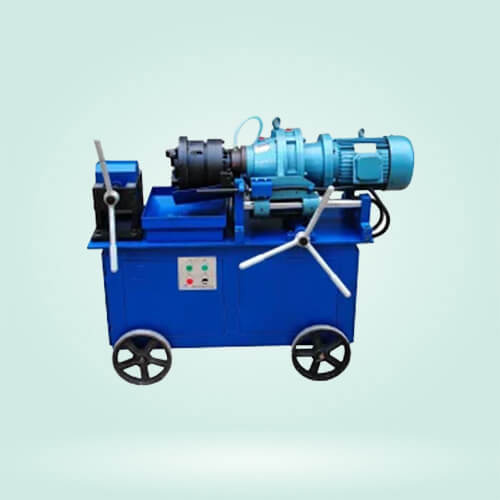

BST THREADING MACHINE
| MACHINE DETAILS | |
|---|---|
| Product Code | JEW BST40 |
| Rebar Threading Capacity | Upto 40 |
| Motor Power | 4 Kw/415 v |
| Speed | 40-62 r/min |
| Drive/Driven Type | Gear |
| Automation Grade | Semi-Automatic |
| Weight | 380 Kg |

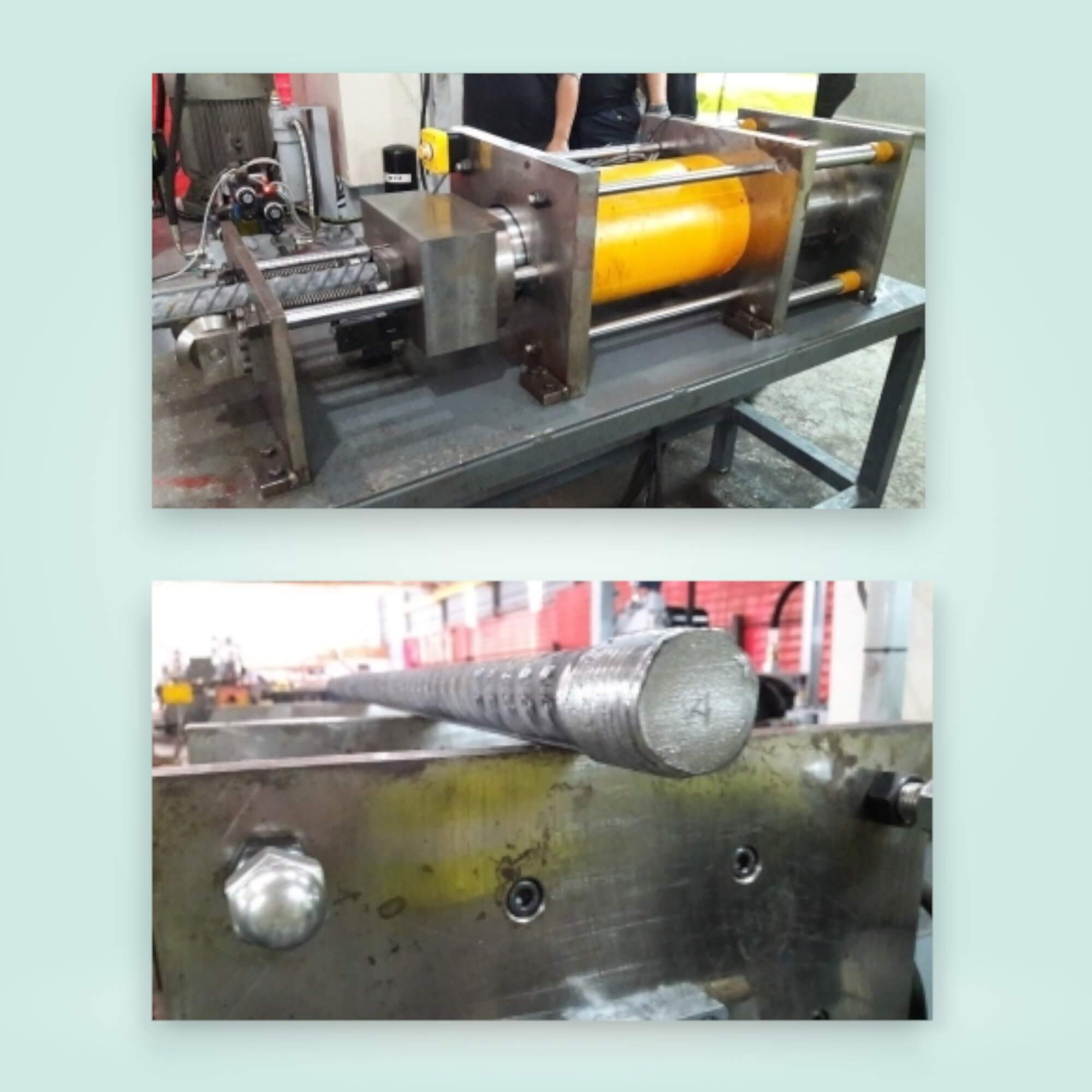

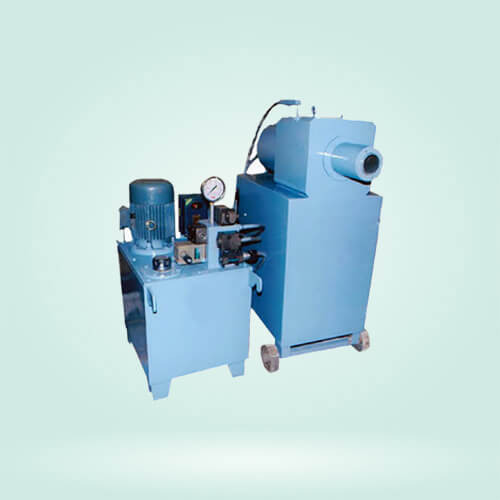

TMT FORGING MACHINE
| MACHINE DETAILS | |
|---|---|
| Product Code | JEW TMT40 |
| Rebar Forging Capacity | Upto 40mm |
| Motor Power | 3 Phase |
| Voltage | 440 v |
| Heater Material | D2 |
| Frequency | 50 Hz |
PROOF LOAD TEST MACHINE
| TESTING | DEFINITION | CRITERIA | |
|---|---|---|---|
| Tensile Strength (Rm) | Stress corresponding to the maximum force (Fm) |
SHOULD EXCEED | |
| GRADE | TENSION | ||
| 250 | 287.5 N/mm² | ||
| 500 A | 525 N/mm² | ||
| 500 B | 540 N/mm² | ||
| Permanent Elongation | Permanent Elongation Increase in the original length after being loaded to 0.6fy |
Should not exceed 0.10 mm | |
MACHINE SPARES
FORGING DIE
Forging Die are used in TMT forging machine to forge reinforcing bars. Die size changes according to the size of the reinforcing bars.

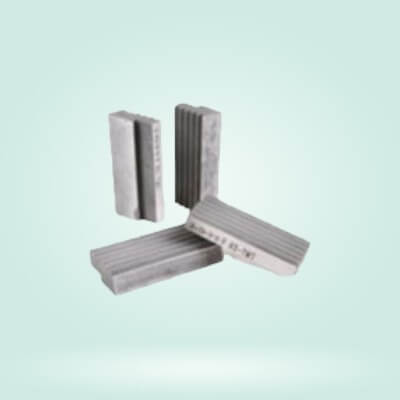

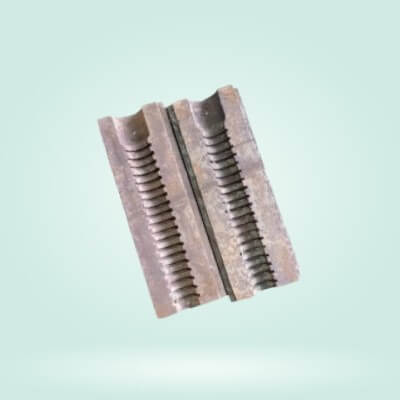

LANDIS CHASER
Landis Chaser are used forthe threading purpose in landis threading machine. Chaser size is dependent on the pitch ofthe threads.

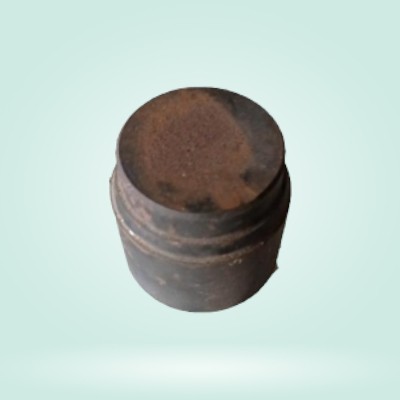

FORGING PUNCH
Punch are used in forging machine with Forging die. Punch size changes according to die to size.

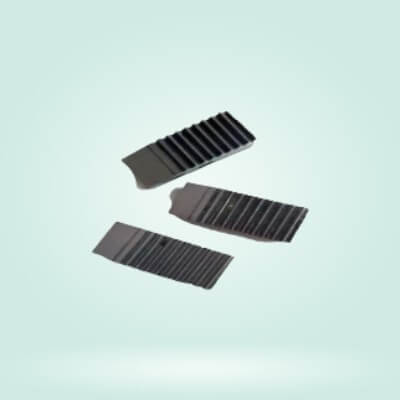

BST CHASER
These chaser are for the bst threading machine forthreading purpose. Chaser size is dependent on the pitch ofthe threads.

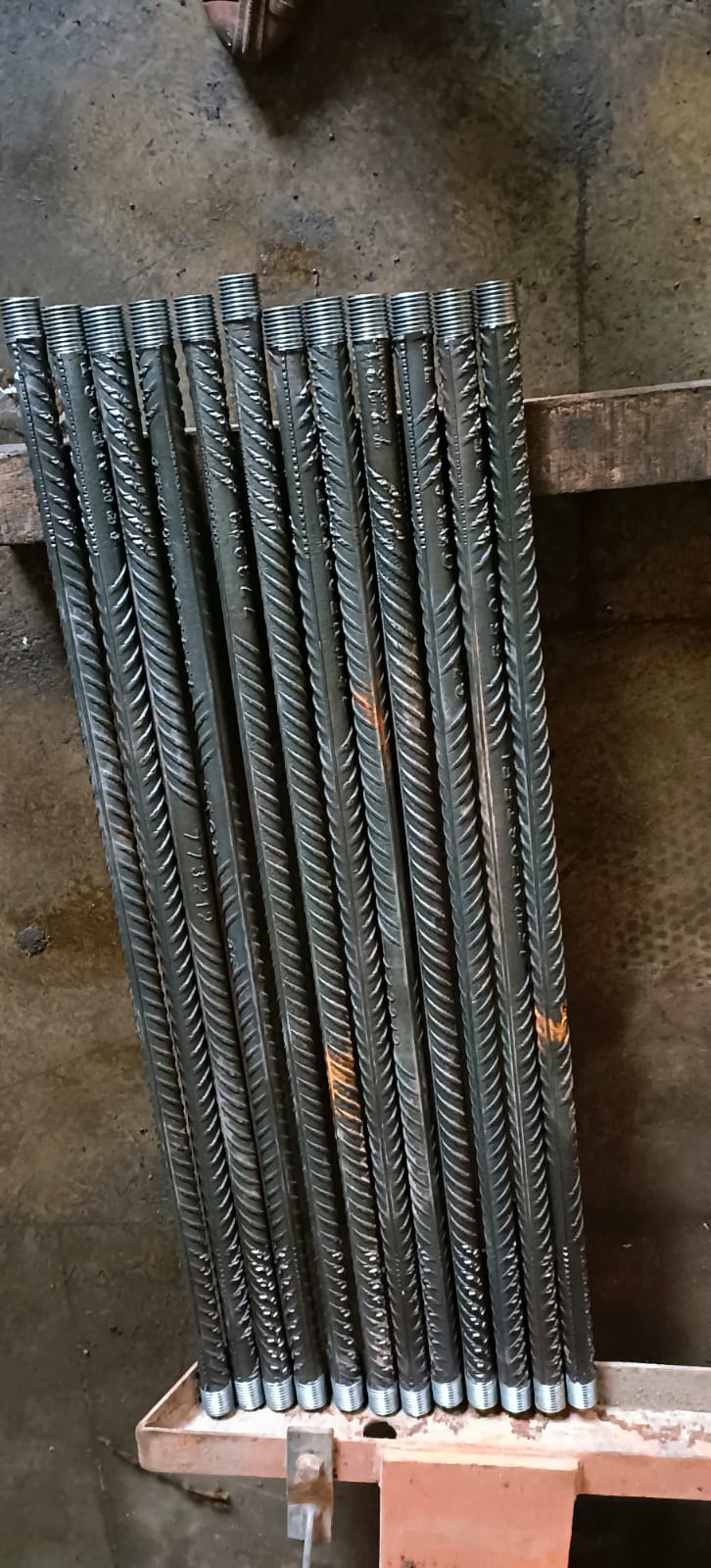

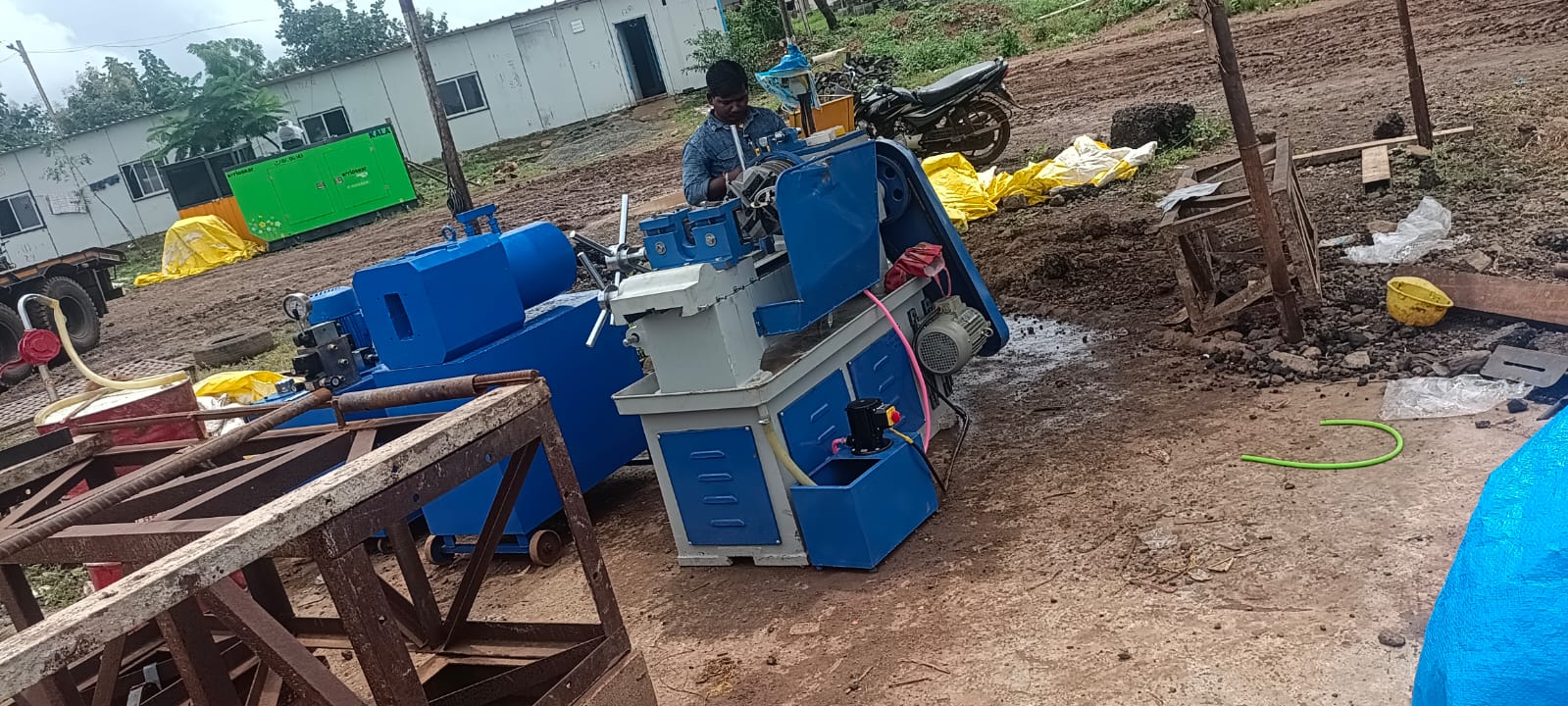

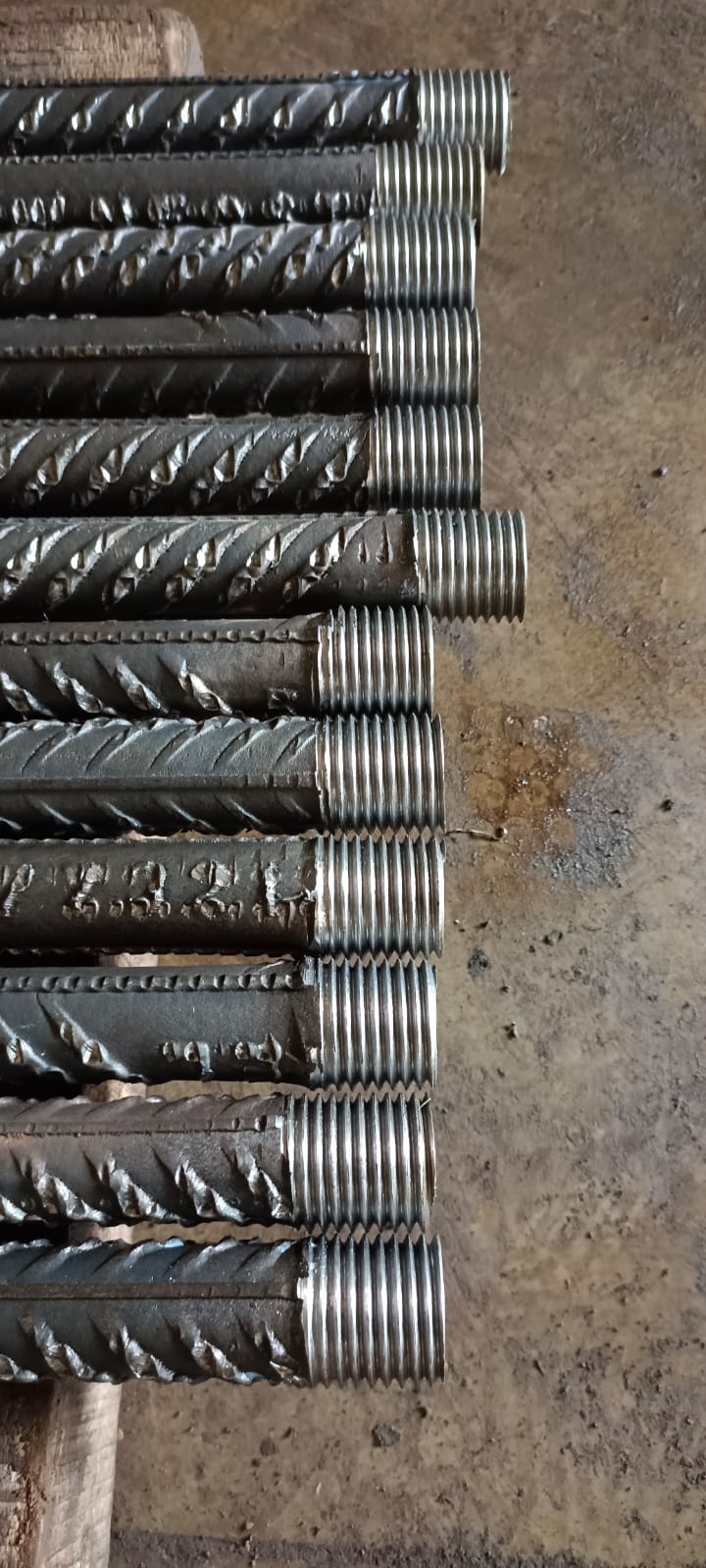

Product Gallery
